 | | Technical Data

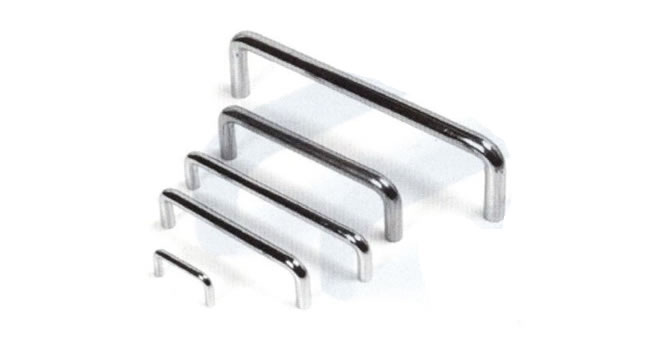

YKHD-G HB, HBS Series
| 항목 |
내용 |
| Material |
HB(STEEL), HBS(STAINLESS STEEL) |
| Surface Processing |
CR / 연마 |
| Application |
반도체 장비, 정보통신 장비 등 |

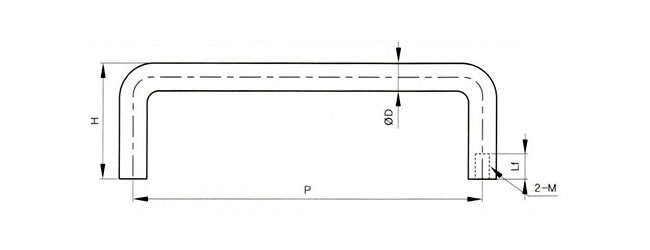

HB(STEEL)
| HB D*P |
D |
P |
H |
Lf |
M |
| HB 5*32.4 |
5 |
32.4 |
24 |
7 |
M3 |
| HB 5*37 |
5 |
37 |
24.5 |
7 |
M3 |
| HB 6*52 |
6 |
52 |
23 |
7 |
M3 |
| HB 6*60 |
6 |
60 |
23 |
7 |
M3 |
| HB 6*90 |
6 |
90 |
23 |
10 |
M4 |
| HB 8*48 |
8 |
48 |
27 |
10 |
M4 |
| HB 8*58 |
8 |
58 |
27 |
10 |
M4 |
| HB 8*75 |
8 |
75 |
27 |
10 |
M4 |
| HB 8*95 |
8 |
95 |
27 |
10 |
M4 |
| HB 8*100 |
8 |
100 |
27 |
10 |
M4 |
| HB 8*105 |
8 |
105 |
27 |
10 |
M4 |
| HB 8*120 |
8 |
120 |
27 |
10 |
M4 |
| HB 8*125 |
8 |
125 |
27 |
10 |
M4 |
| HB 8*150 |
8 |
150 |
27 |
10 |
M4 |
| HB 8*180 |
8 |
180 |
27 |
10 |
M4 |
| HB 10*100 |
10 |
100 |
40 |
11 |
M6 |
| HB 10*120 |
10 |
120 |
40 |
11 |
M6 |
| HB 10*125 |
10 |
125 |
40 |
11 |
M6 |
| HB 10*150 |
10 |
150 |
40 |
15 |
M6 |
| HB 10*180 |
10 |
180 |
40 |
11 |
M6 |
| HB 12*125 |
12 |
125 |
50 |
11 |
M6 |
| HB 12*150 |
12 |
150 |
50 |
11 |
M6 |
| HB 12*190 |
12 |
190 |
50 |
15 |
M6 |
| HB 12*200 |
12 |
200 |
50 |
11 |
M6 |
| HB 12*250 |
12 |
250 |
50 |
11 |
M6 |
| HB 12*300 |
12 |
300 |
50 |
12 |
M8 |
HBs(stainless STEEL)
| HB D*P |
D |
P |
H |
Lf |
M |
| HBS 8*75 |
8 |
75 |
28 |
7 |
M4 |
| HBS 8*95 |
8 |
95 |
28 |
7 |
M4 |
| HBS 8*105 |
8 |
105 |
28 |
7 |
M4 |
| HBS 8*125 |
8 |
125 |
28 |
7 |
M4 |
| HBS 10*100 |
10 |
100 |
40 |
10 |
M6 |
| HBS 10*120 |
10 |
120 |
40 |
10 |
M6 |
| HBS 10*125 |
10 |
125 |
40 |
10 |
M6 |
| HBS 10*150 |
10 |
150 |
40 |
10 |
M6 |
| HBS 10*180 |
10 |
180 |
40 |
10 |
M6 |
| HBS 10*200 |
10 |
200 |
40 |
10 |
M6 |
| HBS 10*250 |
10 |
250 |
40 |
10 |
M6 |
| HBS 12*125 |
12 |
125 |
50 |
11 |
M6 |
| HBS 12*150 |
12 |
150 |
50 |
11 |
M6 |
| HBS 12*200 |
12 |
200 |
50 |
11 |
M6 |
| HBS 12*250 |
12 |
250 |
50 |
11 |
M6 |
| |
|
 |
|
 |
 |
